Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering

Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering
Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering
Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering

Grote Afbeelding :  Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering

Productdetails:
Plaats van herkomst: China
Merknaam: Minetech
Certificering: ISO9001
Modelnummer: R38L Zelfboren ankerbout
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 stc
Prijs: $3-$15
Verpakking Details: 1/karton
Levertijd: 15-30 dagen
Betalingscondities: Western Union, MoneyGram, T/T, L/C
Levering vermogen: 30000 Stukken per Maand
Contact

Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering

beschrijving
Productnaam: Zelfborende ankerbout Sleutelwoorden: Verankeringsbout
Modeltype: R38L Kleur: aangepast
Pakket: Houten behuizing Type verwerking: Smeden
Machinetype: De Installatie van de rotsboor Sollicitatie: Bulting, drift • Boorwerk op de bank • Productieboorwerk
Haven: Tianjin Qingdao
Markeren:

Customized Self Drilling Anchor Bolt

,

Constructional Engineering Anchor Bolt

,

Customized Forging Anchor Bolt

R38L Self-Drilling Anchor Bolt for Constructional Engineering
Self-Drilling Anchor Bolt Product Description


As a tension member deep in the stratum, one end of the bolt is connected with the engineering structure, and the other end is deep in the stratum. The whole bolt is divided into a free section and a anchoring section. The free section refers to the area where the tension at the head of the bolt is transmitted to the anchor solid, and its function is to impose prestress on the bolt. The anchorage section refers to the area where the cement slurry binds the prestressed reinforcement to the soil layer. Its function is to increase the bonding friction between the anchor solid and the soil layer, increase the bearing effect of the anchor solid, and transfer the tension of the free section to the depth of the soil.

Self-Drilling Anchor Bolt  Product Specifications
Item Inner diameter(mm) Ultimate load strength(KN) Yield strength(KN) Weight(kg)
R25N 14 200 150 2.3
R32N 21 280 230 3.1
R32N 18.5 280 230 3.4
R32S 16 360 280 3.6
R32SS 15 405 350 4.1
R38N 21 500 400 4.8
R38N 19 500 400 5.5
R51L 36 550 450 7
R51N 33 550 630 8.4
T30 11 320 260 3.41
T30 14 275 220 2.87
T30 16 245 190 2.7
T40 16 660 525 7
T40 20 540 425 5.6
T52 26 925 730 9.87
T73 53 1160 970 14.1
T73 56 1035 830 10.75
T76N 52 1600 1200 15
T76S 45 1900 1500 19.7
T103 51 3660 2670 44.6
T130 60 7940 5250 75



Self-Drilling Anchor Bolt Features:



1.Material adopt high-strength alloy strip steel;Anchor rod
2. The installation is the simplest;Anchor rod
3.Don’t need resin cartridges;Anchor rod
4. The friction force between the friction bolt and the rock mass is large;Anchor rod
5.Bear high shear resistance and tensile strength;Anchor rod

6. Equipped with high-strength plate, evenly force;

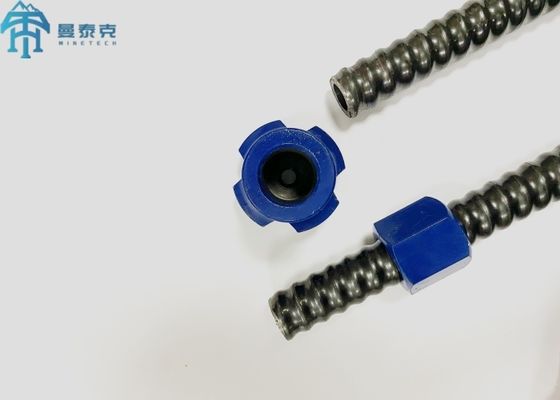

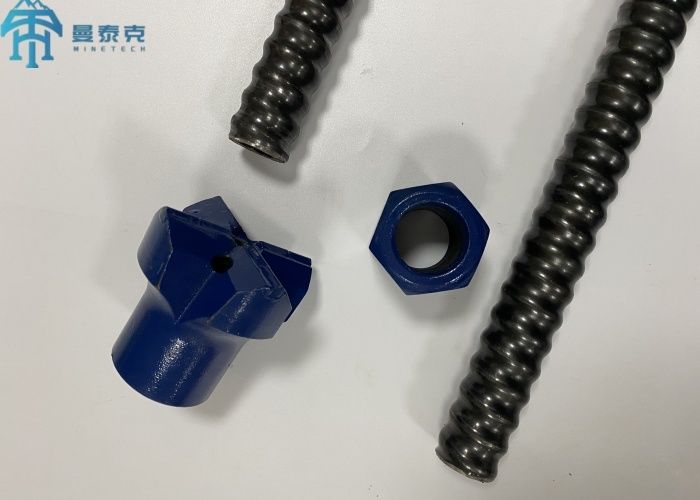

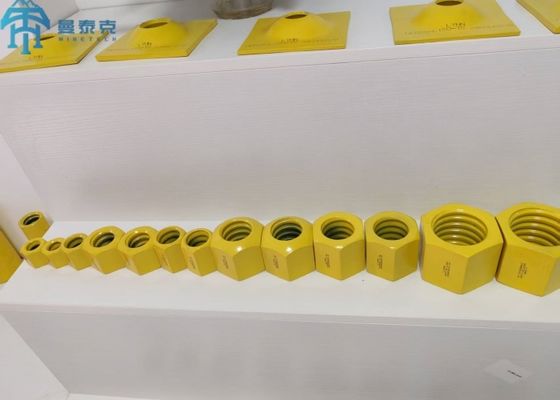

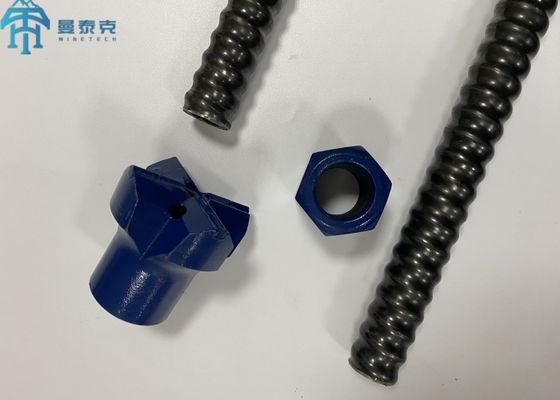

Self-Drilling Anchor Bolt Product Images
Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 0Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 1Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 2
Company Profile

Hebei Minetech Machinery Technology Co, Ltd. is located in Hebei province of China. Our company is a professional production and export tapered and thread rod, chisel and button bit and other mining drilling tools enterprises. With our rich experience for over a decade and with professional engineers and sales team, we focus on providing complete solutions for mining machinery.

Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 3 Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 4 Customized Forging R38L Self Drilling Anchor Bolt For Constructional Engineering 5
Order Information
  • Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight
  • Handling time for an order: Within 10 days supplied from stock
  • Shipping way:
    Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
    Bulk order: we suggest by air or by sea.
  • Quality Control: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
  • After Services:
    a. Our sales team will response for your question within 24 hours (Holidays Excluded)
    b. Technical Support will be available in any time
    c. Free replacement will provide once the failure confirmed caused by our product quality

label:

Aangepaste zelfborende ankerbout,

280kN R32 Zelfborende anker,

T76 Rotsanker gereedschap
